Flame-Retardant EVA Resin Insulated Electrical Protective Clothing Fabric
| FR Standard | |
|---|---|
| Width | |
| Weight | 225 g/m² |
| Material | |
| Application |
EVA Resin Electrical Insulation Protective Clothing Fabric
Product Overview
This EVA resin electrical insulation protective suit is specifically designed for electricians and high-voltage operators. It complies with the XF3008-2020 standard for firefighter protective clothing and offers exceptional electrical insulation and chemical resistance.
Fabric Features
- Anti-sting force: ≥20.4N
- Tensile strength: >650N
- Tear strength: >60N
- Abrasion resistance: Withstands >2000 friction tests under ≥9KPa pressure without wear-through
- Seam strength: ≥200N
Technical Characteristics
Protective Performance: Provides acid and alkali resistance, flame retardancy, and is suitable for rescue and hazardous operations in environments containing gasoline, acetone, ethyl acetate, sulfuric acid, hydrochloric acid, nitric acid, and sodium hydroxide.
Key Parameters:
- Acid resistance: The fabric remains impermeable for 1 hour under 80% H₂SO₄, 60% HNO₃, and 30% HCl solutions.
- Alkali resistance: Impermeable for 1 hour in 6.1mol/L NaOH solution.

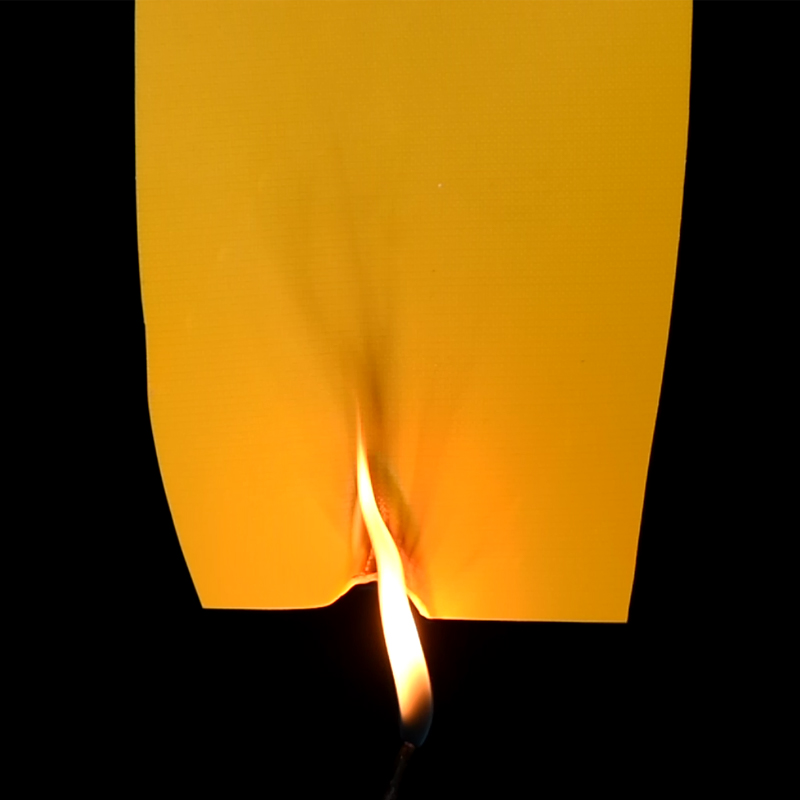

- Flame retardancy: Damage length ≤10cm, after-flame time ≤5s, afterglow time ≤10s, no molten droplets.
- Heat aging resistance: No stickiness or brittleness after 2 hours at 125℃.
- Cold resistance: Withstands -15℃ for 5 minutes, maintaining flexibility without cracks after a 180° fold.
- Gasoline resistance: No cracks or stickiness after 60 minutes of immersion in 120# gasoline.
This protective suit provides reliable safety in high-voltage electrical operations and chemical protection environments.
Fabric Packaging
We can do the packingway as customized. Normally we use the good packing material. The paper tube thickness is 7mm the outside diameter is 9cm. the inside diameter is 7.6cm. the transparent PE tube bag with the thickness of 12.5 silk and above,the two ends of each roll are pasted with printing adhesive.
Finished Packaging
Our finished products are also meticulously packaged according to strict standards, including home textiles, bedding, event supplies, medical supplies, clothing, and industrial products, to ensure they arrive at your destination in the best possible condition.
Protective Packaging
High-end fabrics are packed in wooden crates during transportation to ensure optimal protection and integrity. We adhere to stricter standards in packaging to ensure that the fabrics remain undamaged during transit.
Goods Shipping
During shipping, goods are carefully loaded into containers following strict procedures to ensure stability and safety. Each package is arranged in an orderly manner to maximize space utilization while preventing movement or damage during transit. Reinforced strapping, pallets, and protective materials are applied when necessary to secure the cargo, ensuring that the products arrive at their destination in perfect condition.
